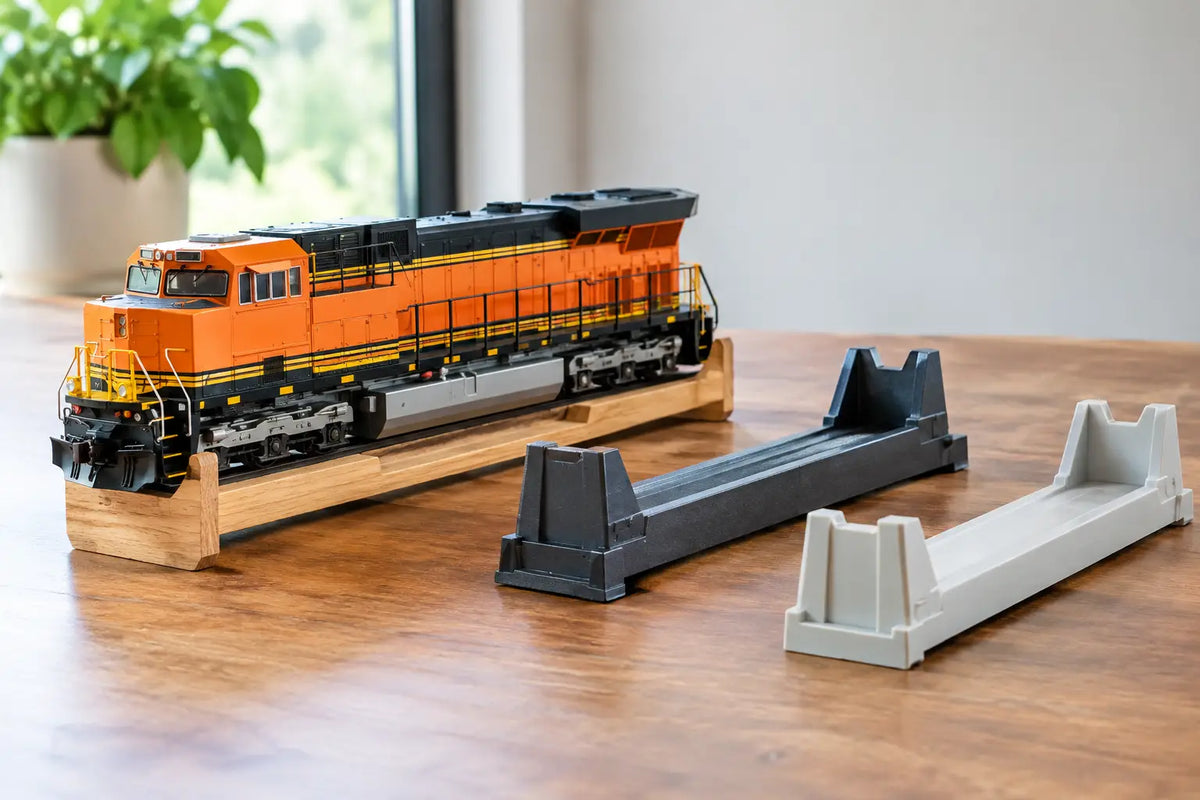

A locomotive balanced on its roof, cab edge or buffer beam is one slip away from bent handrails and chipped paint. The question, which cradle fits locomotives, is therefore less about finding a convenient stand and more about supporting the model at the correct points while keeping the wheels, motion and detail clear.
A good servicing cradle gives you both hands back. It holds the locomotive securely while you fit couplings, work on brake gear, add transfers, clean wheels or inspect underframe detailing. The right fit depends on the model's scale, its body dimensions and the way its chassis is arranged - not simply whether it is labelled as a tank engine, diesel or steam locomotive.
Which cradle fits locomotives by scale?
Scale is the sensible place to start because it sets the broad size of the model. A cradle made for N gauge has a much narrower working area than one intended for OO, HO or O gauge, while O gauge locomotives need substantially more room and a stronger, wider support.
That said, scale alone is not a guarantee. Two OO gauge locomotives can differ greatly in width, length and weight. A compact 0-4-0 tank engine and a large Pacific may share a scale, yet the latter has more overhang and may need its supports positioned further apart. Likewise, diesel locomotives can have broad bodies, exposed bogie detail and fuel tanks that affect where the cradle can safely contact the model.
Treat the stated scale as the first filter, then check the usable internal width and support range of the cradle against your actual locomotive. This is particularly worthwhile with older tooling, narrow-bodied prototypes, locomotives fitted with aftermarket details, and models from different national standards.
Measure the locomotive, not the box
Before choosing a cradle, take three quick measurements from the locomotive itself. You need the widest point of the body, the overall length, and the distance between sensible support points underneath the body or chassis. A steel rule is usually enough, but callipers make the job easier where clearances are tight.
The body width matters because the cradle should support the locomotive without pinching it. There should be enough clearance for cab-side handrails, pipework and other delicate projections. A body that only just squeezes into a cradle is not a good fit, even if it technically sits inside it.
Length matters differently. The cradle does not have to support every millimetre of the model, but the support points must sit far enough apart to stop it rocking. On a long locomotive, a short cradle may leave too much weight hanging beyond each end. This can be acceptable for light inspection work, but it is less confidence-inspiring when you are applying pressure to fit parts or clean wheel treads.
Finally, look underneath. Identify solid, relatively plain areas that can carry the model without touching cylinder cocks, steps, sand pipes, brake rigging or traction-tyre wheels. The ideal cradle holds the locomotive by sturdy chassis or body-edge areas, leaving the vulnerable detail and running gear free.
Steam locomotives need clearance around the motion
Steam locomotives are often the most demanding fit. Outside cylinders, valve gear, connecting rods, drain cocks and separate pipework can project well beyond the frames. A narrow or shallow cradle may place those parts under pressure, even when the boiler itself appears well supported.
Choose a design with a sufficiently wide opening and raised contact areas that support the model clear of the motion. Check the locomotive both facing forwards and backwards, as the geometry around the cylinders and cab can vary. If the tender is separate, support it independently rather than using it to balance the locomotive at an awkward angle.
A locomotive-and-tender pair should never be lifted or moved while resting in a cradle. The drawbar connection is not intended to take that sort of strain.
Diesels and electrics need underframe awareness
Diesel and electric models often look simpler to cradle, but their underframes can carry plenty of detail. Bogie-mounted couplings, air tanks, battery boxes, steps and fuel tanks may sit lower than expected. A cradle that touches a central fuel tank or fine step can cause damage when the model is pressed down into place.
Look for clear chassis edges, or arrange the support points near stronger areas between the bogies where the model allows it. On long bogie locomotives, keep the cradle supports away from bogie swing and wheelsets. You need room to turn the model slightly during handling without snagging brake hoses or couplings.
Width, depth and support shape all matter
A cradle is not just a trough. Its contact shape determines whether the locomotive is stable and whether the paintwork is protected. Broad, gently angled supports spread the load better than narrow hard edges, especially on rounded boilers and smooth diesel roofs.
Depth is a trade-off. A deeper cradle can feel more secure, but it can hide the lower body side or restrict access to the area you want to work on. A shallower cradle offers better access, provided the locomotive cannot roll or tip out during normal bench work. For fitting tiny parts, painting details or checking wheel pickups, easy access is often more useful than maximum enclosure.
Consider the finish of the contact surfaces too. Even a carefully printed cradle benefits from being kept clean. A grain of ballast, a swarf shaving or dried paint caught beneath a model can mark a finish surprisingly quickly. Wipe the cradle before placing down a freshly painted or weathered locomotive.
Decide what work the cradle must support
The best cradle for your bench depends on the jobs you actually do. If you mostly clean wheels and inspect pickups, you need access to the underside and a stable hold that does not foul the wheelsets. If you weather locomotives, you may prioritise safe handling while the paint cures, plus easy access to roof and body-side details.
For coupling work and front-end detailing, check that buffer beams remain accessible. For fitting cab details or glazing, make sure the cradle does not obstruct the cab or leave the model unstable when you apply gentle pressure. There is no single perfect orientation for every task, which is why a cradle with sensible support spacing is more useful than one designed around a single locomotive shape.
It is also worth thinking about your usual working area. A permanent bench can accommodate a dedicated cradle ready for service work. If you build at the kitchen table or pack tools away after each session, a compact cradle that stores neatly may be the better choice. Bench space is part of compatibility.
A practical fit check before committing
Use this simple check whenever you are matching a locomotive to a servicing cradle:
- Confirm the cradle's stated scale or width range is appropriate for the model.
- Measure the widest body point, including vulnerable side details where relevant.
- Check that the contact points avoid wheels, rods, cylinders, steps and underframe fittings.
- Make sure the model sits level without rocking or relying on its couplings, buffers or tender.
- Test access to the area you intend to work on before starting a repair or paint job.
When a cradle is the wrong tool
A servicing cradle is excellent for controlled bench work, but it is not a storage rack or transport tray. Do not leave a locomotive in one for long periods where it can collect dust, be knocked by other tools or sit against uncured paint. For transport, use the original packaging or a properly fitted protective case.
Equally, a cradle cannot correct a loose bogie, poorly fitted coupling or damaged wheelset. If the locomotive sits unevenly, establish whether the issue is the cradle fit or the model itself. A quick inspection can reveal a displaced brake rod or hanging coupling before it becomes a larger repair.
At The 3D Forge, practical bench tools are designed by modellers for modellers, with the Forge Cat giving each one the final quality inspection. Still, the most useful tool is the one that suits your particular fleet. Measure first, allow room for the details that make your locomotives yours, and choose support that lets you work with confidence rather than caution.
