A hull can look perfectly respectable while resting in the box, then reveal a twist, a stepped join or a bow that refuses to meet once cement is involved. This guide to ship hull alignment is about avoiding that point of no return. A few deliberate checks before glue turns a difficult correction into a routine part of the build.
Start with the parts, not the cement
Large hull halves can move slightly after moulding, particularly on longer subjects. That does not automatically mean there is a fault in the kit. Thin plastic can relax once removed from its sprue gates, and a part may only look distorted because it is unsupported on the bench.
Remove the main hull parts cleanly and trim any remaining gate material, flash or moulding seams from the mating edges. Do not start sanding the whole joint flat immediately. First identify what is actually preventing the two sides from meeting. A small raised ejector-pin mark, a locating pin sitting proud, or paint accidentally applied to an interior surface can force the hull out of line.
Wash the parts if required, then let them dry fully. More importantly, give yourself a flat, uncluttered work area. Trying to assess a long hull over scattered cutters, paint jars and sanding sticks invites a false reading of the joint.
Dry fit the hull in stages
Bring the halves together without glue and begin at the stern or bow rather than trying to close the entire length at once. Check that the keel line meets evenly, then work along the hull, applying only light finger pressure. If the fit changes dramatically as you move along it, stop and find the source rather than forcing the parts together.
Most plastic kits use locating pins and sockets, but these are guides, not a guarantee of accuracy. A pin can be slightly oversized or the socket can carry a ridge of plastic. If a pin prevents a flush fit, gently reduce it or open the socket with a suitably sized drill bit. The aim is for the parts to locate positively without requiring brute force.
Look at the join from several angles. Viewed from above, the centreline should run straight from stern to bow. Viewed from the end, both sides should sit at the same height. Then place the dry-fitted hull on a known flat surface and look for rocking. A hull that rocks may have a warped part, but it can also be reacting to a projecting bilge keel, rudder aperture or uneven moulded detail. Establish the cause before correcting anything.
Check the keel line against a straight reference
The keel is the best visual reference for hull alignment. Hold a steel rule, straight strip of styrene or another genuinely straight edge alongside it. On a full-hull ship model, look for a smooth, continuous line rather than isolated gaps caused by moulded detail.
A slight curve may be correct on some hull forms, so compare it with the instructions and reference material where possible. What you are hunting for is an unintended kink or twist. If the bow points to one side while the stern remains straight, the hull halves may be offset. If both ends look true but the middle appears to roll, one half may be under tension.
For two-piece waterline hulls, use the waterline joint as your main reference instead. A mismatch here is especially noticeable once the model is mounted in a sea base or displayed at eye level.
Decide whether the hull needs support

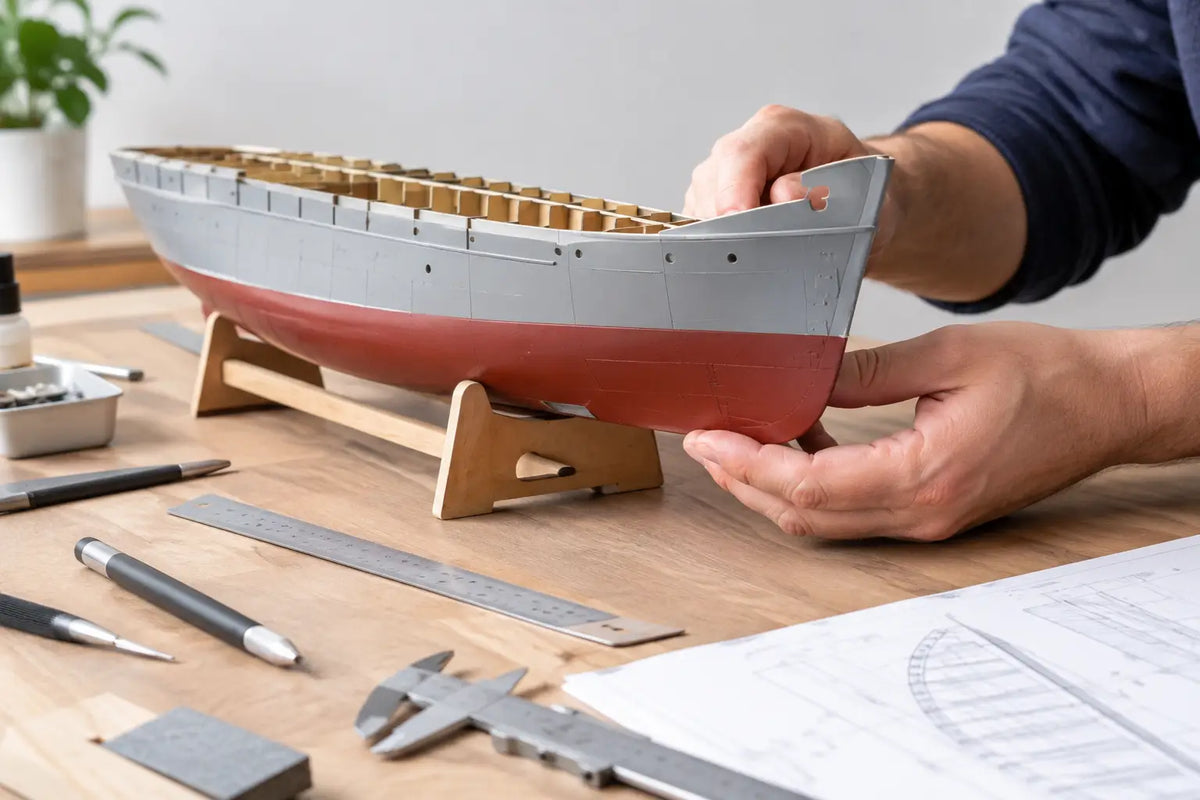

A long hull is awkward to hold because pressure at one point can open the seam somewhere else. This is where a purpose-made berth jig earns its place on the bench. Supporting the model at several points keeps it level while leaving the join accessible, rather than balancing it on paint pots, foam offcuts or a folded towel.
Set the supports beneath strong areas of the hull and keep them clear of delicate bilge keels, shaft brackets and other fittings. The hull should rest securely without being squeezed. For a complex shape, adjustable supports are useful because they allow you to establish a stable position before committing to glue.
At The 3D Forge, ship berth jigs are designed around precisely this job: keeping a hull steady while both hands remain free for checking, applying cement and making small corrections. As with every bench tool, the Forge Cat gives the final quality inspection, although it is less helpful around loose photo-etch.
Support matters even more if the kit calls for internal bulkheads, decks or braces. These parts can either preserve alignment or introduce stress. Dry fit them with the hull halves in the jig and note whether they push the sides apart, pull them in, or leave a gap beneath a deck edge.
The guide to ship hull alignment during gluing
Do not apply cement along the full length of a large hull seam and hope the clamps will sort it out. Plastic cement begins softening the mating surfaces quickly, and a long wet joint can slide out of position while you are concentrating on the opposite end.
Instead, glue in controlled sections. Start by securing the bow and stern, checking the keel and deck level at each end. Once these points are firm enough to hold their position, work along the hull in short lengths. Thin liquid cement is useful where the dry fit is already close because it can wick into the seam. A slower-setting cement gives more working time where parts need gentle adjustment.
Use enough clamping force to hold the seam closed, but no more. Over-clamping can leave a dent in thin plastic, create a ridge along the join or shift one hull half upwards. Small clamps, elastic bands and low-tack tape all have their place, depending on the hull shape. Protect the plastic with card or soft pads where a clamp touches a visible surface.
After each section is secured, inspect it before moving on. Check the join from the bow, stern and overhead. Run a fingertip lightly along the seam. Your finger will often detect a step long before it becomes obvious under primer.
Correcting a mismatch before it sets
If a section has moved while the cement is still workable, separate it carefully only as far as necessary, realign it and re-secure it. Do not keep flexing the same softened area. That can stretch the plastic and weaken the edge.
Where a small step remains, decide whether it is better to correct it mechanically or fill it later. A slight proud edge that can be scraped flush is usually preferable to a recessed joint that needs substantial filler. On ships with prominent hull plating, portholes or raised strakes close to the seam, preserving surface detail may matter more than chasing an invisible joint at all costs.
If the hull is visibly warped before assembly, gentle warming can sometimes help, but it is not the first remedy to reach for. Warm water can soften plastic unevenly, and too much heat risks creating a new problem. Try dry fitting, support and careful bracing first. If heat is needed, use it cautiously and make gradual corrections.
Use internal structure to keep the shape true
Decks, bulkheads and transverse braces are not merely interior detail. They help define the hull’s width and prevent the sides from drawing together or spreading apart. Test each one before the main seam is fully fixed.
A bulkhead that is fractionally too wide can bow the hull sides outwards. One that is too narrow may leave a pinched waist. Sand the part gradually, checking it in position each time. It should sit naturally between the hull sides, not act as a spring.
For older kits or very flexible hulls, adding simple internal braces from scrap styrene can be worthwhile. Fit them only where they will not interfere with decks, mounting screws, lighting or later interior work. A brace should maintain the correct beam, not force an arbitrary shape into the model.
Check again before the next major stage
Leave the hull to cure on its supports. Setting it down directly on one side while the seam is soft can introduce a subtle twist that is difficult to diagnose later. Once cured, repeat the straight-edge and flat-surface checks before fitting the deck, superstructure or hull plating.
This is also the sensible point to deal with the seam. Scrape or sand in restrained passes, restoring lost panel lines or plating only where needed. A perfectly smooth join is not always the goal on a working vessel subject - the goal is a convincing hull form with the original surface character intact.
A well-aligned hull quietly improves everything that follows: decks sit square, railings run true, masts look vertical and a display base feels intentional. Take the extra ten minutes at the dry-fit stage. It is far easier than persuading a finished ship to look straight once the paint, rigging and tiny fittings are already aboard.
