A model hull sliding in a metal vice jaw is the sort of mistake that only needs to happen once. When considering a 3D jig versus bench vice, the real question is not which tool grips harder. It is which one supports the job in front of you without turning fine detail, paintwork or a fragile assembly into collateral damage.
For scale modellers, a holding tool should make work calmer. It should present the model at a useful angle, leave both hands free for fitting, sanding or painting, and avoid placing pressure where the kit is at its weakest. A bench vice and a purpose-built 3D jig can both earn their space, but they solve very different problems.

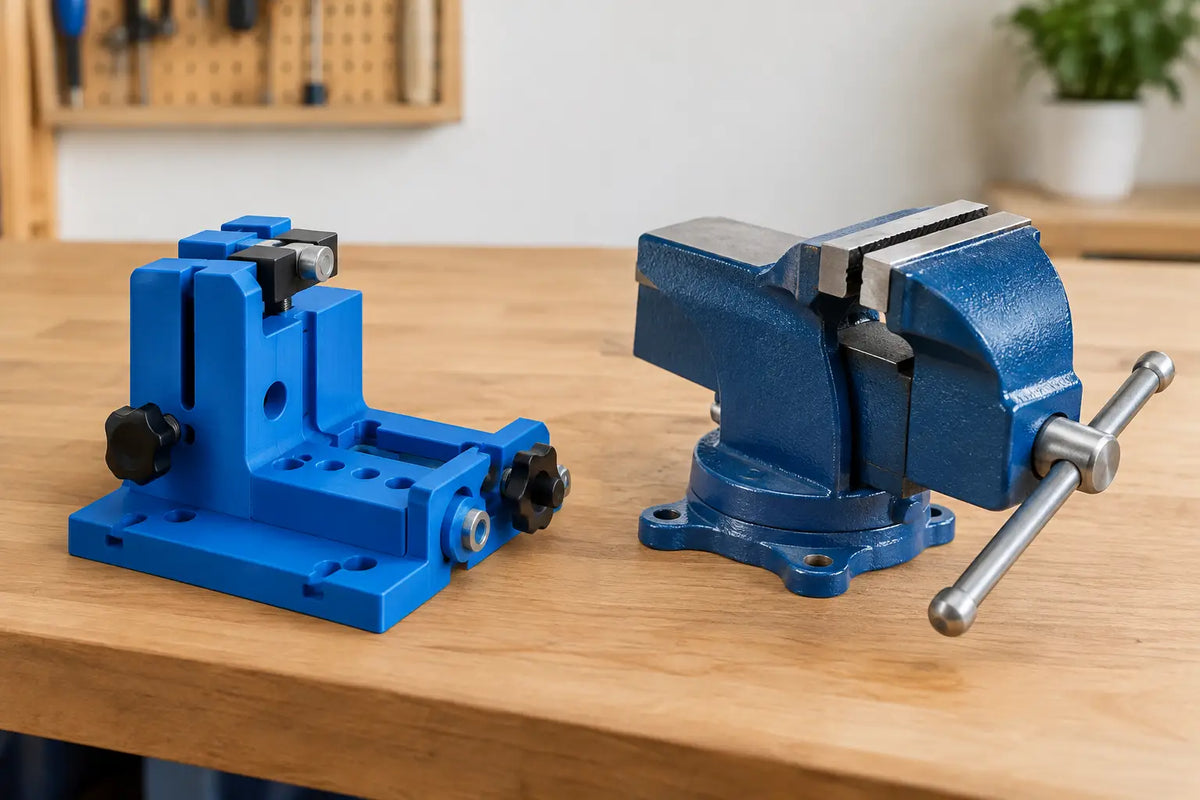

3D jig versus bench vice: the key difference
A bench vice is designed to clamp. Its strength is firm, adjustable pressure on materials that can tolerate it: timber strip, brass rod, metal parts, plastic stock and the occasional scratch-building task. It is a workshop tool first and a modelling tool second.
A 3D jig is designed to support and position. Rather than squeezing a model between two jaws, it cradles a hull, locomotive body, fuselage or sub-assembly over a broader contact area. The aim is controlled access, not maximum clamping force.
That distinction matters at the bench. A locomotive servicing cradle, for example, can hold a model upside down so that wheels, pickups, brake gear or underframe details are accessible. A ship berth jig can support a hull while you work along a waterline, add railings or fit delicate deck equipment. Neither job benefits from the concentrated pressure of a vice.
A good jig also gives you repeatability. Set the model down, work on it, lift it out, then return it to the same supported position. That is especially useful over several sessions, when a complex build is too delicate to keep moving around the bench.
When a bench vice is the better tool
A vice is not the villain of the modelling room. It is simply best used for jobs where the workpiece is separate from the finished model, or where it is strong enough to be clamped securely.
Use a bench vice when cutting brass tube, filing white metal castings, drilling resin blocks, bending wire, trimming hardwood, or holding a simple fixture while adhesive cures. Its weight and screw mechanism give it a stability that a lightweight printed jig is not meant to provide. If you need to apply force with a saw, pin vice, file or small hammer, the bench vice is usually the sensible choice.
Soft jaw covers can make a vice friendlier to plastic, but they do not turn it into a model cradle. Even padded jaws apply force from two narrow opposing points. On an unbuilt kit part, that may be fine. On a painted body shell with handrails, glazing, aerials or weathering, it can still be a risky arrangement.
There is also the matter of bench space. A permanent vice is useful in a dedicated workshop, but it takes up room and can dominate a smaller modelling desk. A modeller who primarily builds plastic kits, rolling stock or ships may use a vice occasionally, while reaching for a jig in almost every build session.
Where a 3D jig earns its place
The best reason to use a jig is that it removes the need to hold the model in your hands while performing precise work. That reduces fatigue, improves control and lowers the chance of handling damage.
Working on underframes and running gear
Railway models are a clear example. Once a locomotive or coach body has gained detail, resting it on its roof or side is an invitation to bend a handrail or flatten a roof vent. A cradle supports the body safely while exposing the underside. You can install pickups, inspect wheelsets, fit couplers or make small adjustments without balancing the model on foam, paint pots or whatever happened to be nearest.
The support points matter. A well-designed jig should bear against sturdier areas of the model rather than fine surface detail. It should also leave enough clearance for bogies, cylinders, footplates and other protrusions. That is why purpose-built cradles are so useful: they reflect the awkward shapes modellers actually deal with.
Painting and finishing without fingerprints
A jig can be equally useful during painting and weathering. Supporting a body shell at an angle gives better access to lower panels, roofs and ends, while keeping freshly painted surfaces out of your hands. For detail painting, it is easier to steady a brush when the model is resting predictably rather than shifting under light finger pressure.
This does not mean every paint job needs a jig. Small parts are often better on clips, holders or a temporary mounting stick. But for larger assemblies, a cradle gives a stable, low-stress way to rotate your attention around the model without constantly rotating the model itself.
Ships, aircraft and awkward shapes
Long hulls and broad wings are difficult to hold because their safe contact points are rarely obvious. A ship berth jig supports the hull while leaving the deck and sides accessible. For aircraft, simple adjustable supports can keep a fuselage clear of fragile antennae, undercarriage bays or newly fitted control surfaces.
The value is not just protection. A supported model stays at a consistent height, which helps when checking alignment. If you are fitting masts, railings, rigging or photo-etched parts, having the model sit level and still makes a noticeable difference.
Material, grip and pressure: practical trade-offs
A metal bench vice wins on brute strength and durability. It can take hard use for years and cope with jobs that would quickly damage a plastic jig. If you regularly fabricate metal components, build brass kits or undertake heavier scratch-building, it deserves a place nearby.
A 3D-printed jig wins on model-friendly geometry. It can be shaped around the work instead of asking the work to fit two flat jaws. Printed material is generally kinder than bare metal, although it is still worth checking that the contact surfaces are clean. A speck of sanding grit trapped beneath a finished model can mark paintwork just as effectively as an overly enthusiastic clamp.
Neither tool is universal. A jig is not a substitute for a vice when drilling hard material or sawing stock. A vice is not a substitute for a jig when handling a finished model with fine detail. Keeping that line clear saves frustration and avoids asking either tool to do a job it was never designed for.
Choosing the right jig for your models
Start with the task, then consider the shape and scale of the model. A locomotive cradle needs adequate length, sensible support positions and clearance beneath the chassis. A ship support needs a stable berth that does not obstruct the areas you need to reach. For general sub-assemblies, a compact adjustable jig may be more useful than a dedicated cradle.
Think about how you build, too. If your bench is cleared away after each session, lightweight modular supports are easier to store than a fixed vice. If you work on several projects at once, separate jigs can keep each model safely parked rather than piled on a cutting mat. That small bit of order is often the difference between returning to a project eagerly and spending ten minutes searching for somewhere safe to put it down.
It is worth measuring before choosing a dedicated support. Check the model's overall length and width, but also identify protrusions that need clearance. The aim is a relaxed fit: secure enough that the model will not roll or tip, with no need to force it into position.
At The 3D Forge, tools are designed by modellers for modellers, so the focus is on these everyday bench frustrations rather than generic workshop clamping. Naturally, every printed tool also receives the Forge Cat's final quality inspection, usually from the nearest inconvenient part of the workbench.
A safer, more efficient bench setup
Many modellers benefit from having both tools available, with each kept in its proper role. Put the vice where it can handle cutting, filing and fabrication without shaking the modelling surface. Keep a jig or cradle within easy reach of the main build area, alongside your cement holder, paint station and frequently used hand tools.
That separation also improves workflow. Raw materials and rough work happen at the vice. Finished assemblies, painting and delicate detailing happen in the model-support area. You are less likely to bring metal filings, adhesive smears or clamping pressure into the part of the bench where your best work is taking shape.
Choose the bench vice when the job needs force. Choose the 3D jig when the model needs care. Once a delicate build has a proper place to rest, both hands are free to concentrate on the detail that made you want to build it in the first place.
